過渡平移機

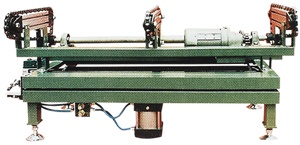

滾筒線專用頂升平移機（QJDY80）


一、 產品概況：
   本機用于滾筒流水線內工件作90度輸出，輸送介質采用4/2”雙節距大滾子鏈，電
   動驅動，升降采用剪刀式頂升機構。
二、 主要機構：
   由”2”雙節距大滾子鏈n排(排數由用戶定)，機架，剪刀式頂升機構，頂升吒
   缸，驅動電機等組成，輸送介質可由用戶定.
三、 動作原理：
   當工件由滾筒線輸送到本機上方時，頂升機構開始上升托起工件，待頂升到位全，
   起動電機，滾子鏈運動，把工件從滾筒線的90度方向輸出.
四、 技術參數：
  ■移動線速度V=10m/min；
  •頂升行程S=40mm(由用戶提供)
  •電機 N380V 120W 50HZ；
  •HLB尺寸由用戶定

 1. Product profile:
   This machine is used for 90 degree output of inner workpiece of pipeline,
   conveying medium adopts 1/2 "double pitch large roller chain, electric drive,
   lifting adopts scissors type lifting mechanism."
 2. Principal bodies:
   It consists of 1 / 2 "double pitch large roller chain n row (the number of rows is
   determined by the user, frame, scissors lifting mechanism, jacking cylinder,
   driving motor, etc.) the conveying medium can be determined by the user.
 3. the principle of action:
   When the workpiece is transported from the drum line to the top of the machine,
   the lifting mechanism begins to lift the workpiece, to be fully lifted, to start the
   motor and roller chain motion, and to output the workpiece from the 90 degree
   direction of the roller line.
 4. Technical parameters:
  • Moving linear velocity VX 10 m / min:
  • Top up stroke 40 mm (provided by user)
  • Motor N380V 120W 50HZ:
  • HLB size determined by user
