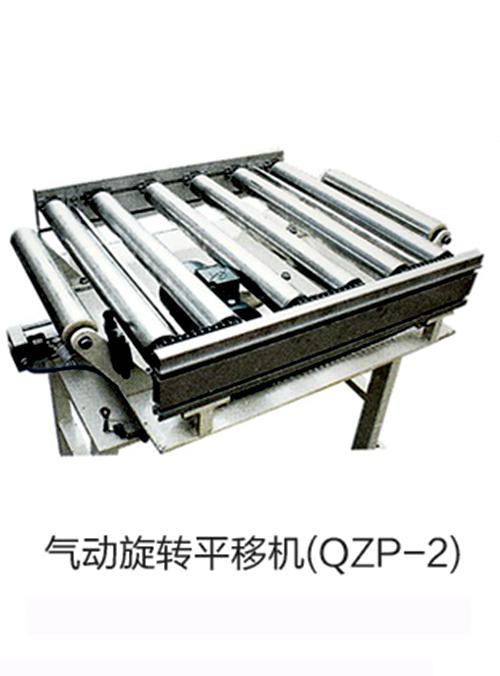

一、 產品概況：
   本機采用滾筒作為輸送介質，旋轉機構采用電機驅動，裝有扭矩護器安全可
   靠，旋轉角度90度或180度。
二、 主要結構：
   由滾筒，驅動電機，機架，旋轉座，旋轉電機，或氣缸、扭矩保護器，旋轉
   角度定位塊等組成。
三、 動作原理：
   當工件完全進入本機后起動旋轉機構，旋轉90度或180度。起動機械滾筒將
   進入的工件輸出，當工件完全離開本機時，旋轉機構即反向復位。
四、 技術參數：
 •移行線速度V (由用戶提供設計)
  •滾筒電機N 380V 250W 50HZ
 •旋轉電機 N380V 180W 50HZ
 •旋轉角度90度180度
 • LHB尺寸由用戶提供設計。
 1. Product profile:
   This machine adopts the roller as tfie conveying medium, the rotating
   mechanism is driven by the motor, the torque protector is safe and reliable,
   the rotation angle is 90 degrees or 180 degrees.
 2. Main structure:
   By roller, drive motor, frame, rotating seat, rotating motor, or cylinder,
   torque protector, rotating angle positioning block and so on.
 3. Principle of action:
   When the workpiece fully enters the machine, start the rotating mechanism,
   rotate 90 degrees or 180 degrees. The starting machine drum will enter the
   ou^ut of the workpiece, when the workpiece completely leaves the
   machine, the rotating mechanism will be reversed reset.
 4. Technical parameters:
 • Moving line speed V (user-provided design)
 • Roller motor N380V 250W 50HZ
 • Rotating motor N380V 180W 50HZ
 • Rotation angle 90 degrees 180 degrees
 • LHB dimensions are designed by the user.
