一、 產品概況：
  本產品遷工業自動化生產線上的一種專用升降機。適用于各類垂直升降輸送。一般最大行程不超過500mm。本機構最大
  的優點長使用方便，安全可靠，占用空間少，屬經濟型升降機。
二、 主要結構：
  本機采用餃叉式升降原理。由狡臂，氣缸，斜導塊，提升滾輪，平移機等組成。
三、 動作原理：
  當工件進入本機后，打開控制閥，代缸在氣壓的作用下缸桿往內縮。升降較臂作上升運動，然后被提升的工件(工裝板)
  輸送出去，升降機構即下降復位.
四、 技術鑫數：
 •升降行程S不大于500mm；     •升降機構H不小于300mm；
 •移行長度L大于800mm；      •移行機寬度B由用戶定；
 •移行線速度V±5m/min (或用戶定)
 •電機N 380V 180W 50H乙•最大頂升負栽100KG；
 •工作氣壓 0.45-0.8MPa；

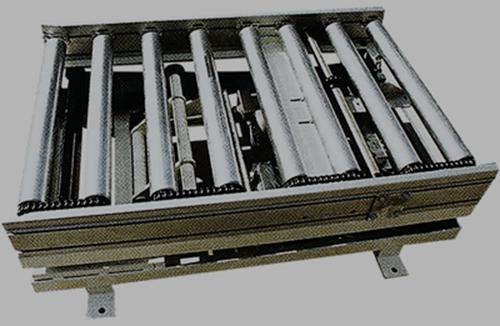

1. Product profile:
  This product is a kind of special lift on the industrial automation production line. It is
  suitable for all kinds of vertical lift and conveyance. The general maximum stroke is
  not more than 500 mm. the biggest advantage of this organization is that it is easy
  to use. safe and reliable, takes up less space, and belongs to economical lift.
2. Main structure:
  This machine adopts hinged lifting principle. It consists of hinge arm. cylinder,
  inclined guide block, hoisting roller, translation machine and so on.
3. Principle of action:
  When the workpiece enters the machine, open the control valve, and the cylinder
  shaft shrinks inward under the action of air pressure. The lifting arm moves upward,
  and then is transported out by the lifting workpiece (tooling board), and the lifting
  mechanism drops and resets.
4. Technical parameters:
• Lifting stroke S is not more than 500mm: • Lifting mechanism H is not less than 300mm:
• Length L > 800mm.       • Width B determined by the user:
• Line speed V±5 m / min (or user-determined)
• Motor N380V 180W 50HZ:  • Maximum lifting load 100KG:
• Working pressure 0.45-0.8MPa:
